Catchfans

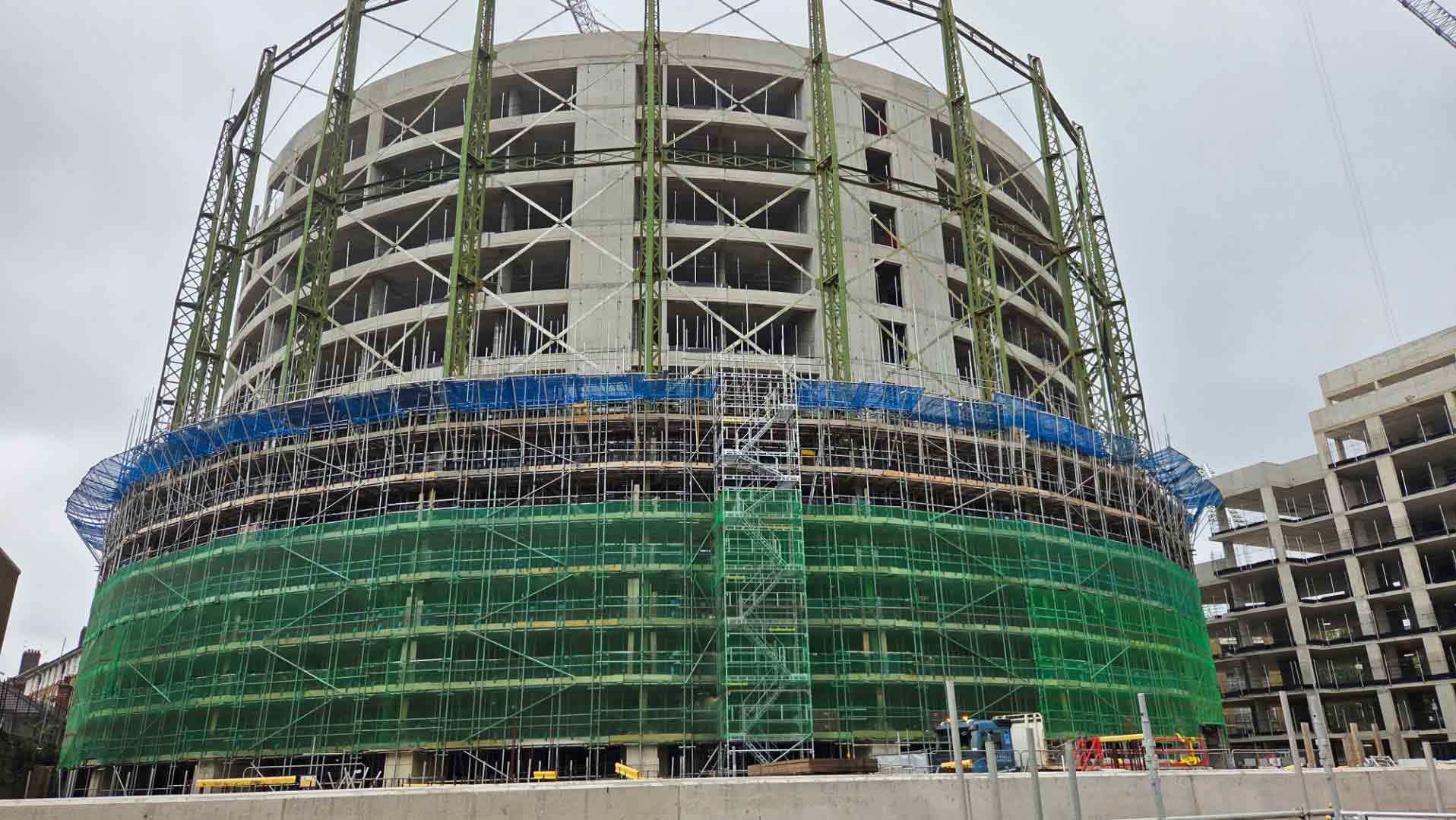

The HAKI Catchfan range offers a versatile safety net system that protects against falling debris on construction sites, enhancing safety for workers and the public. Available in three varied models and multiple sizes, these easy-to-install systems adapt to various structures and comply with safety standards.
- Largest solution projects 4.2m (13'9") from the buildings edge
- Attachments for RC Frame, Steel Frame, Scaffold and CLT
- Full technical support from planning to delivery

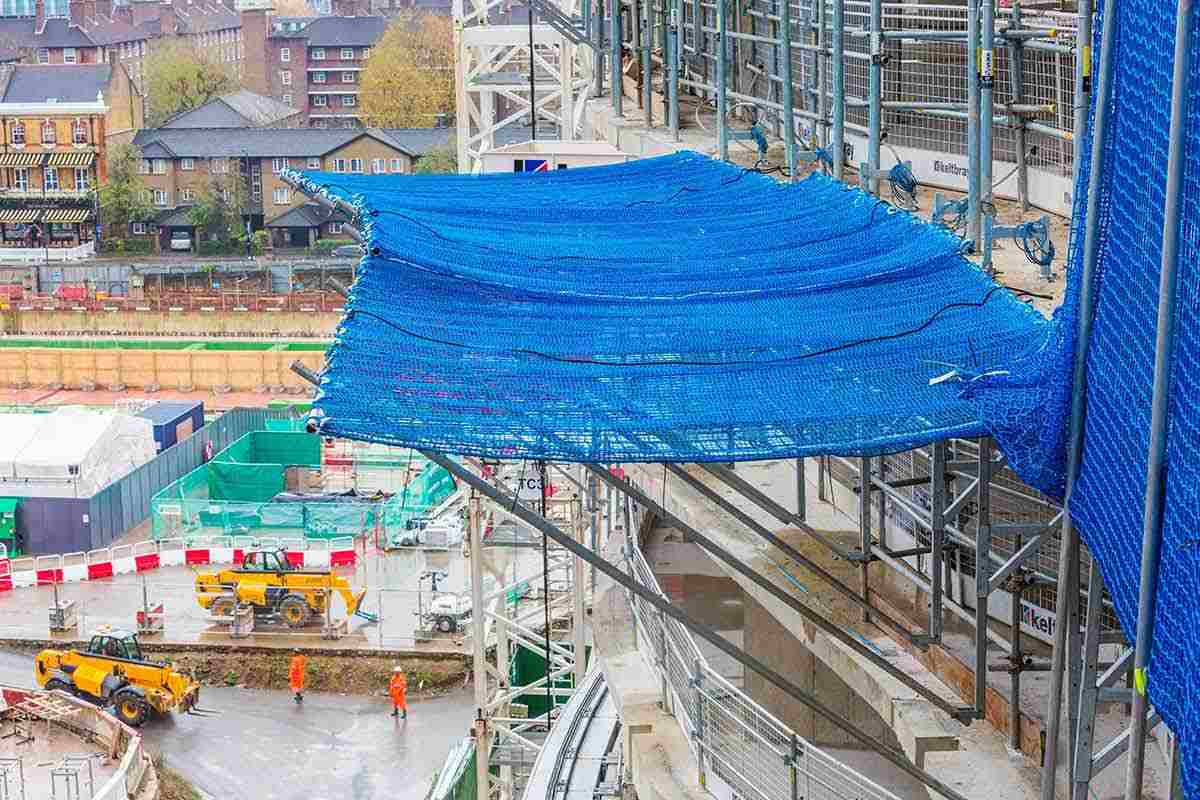

Catchfan Standard

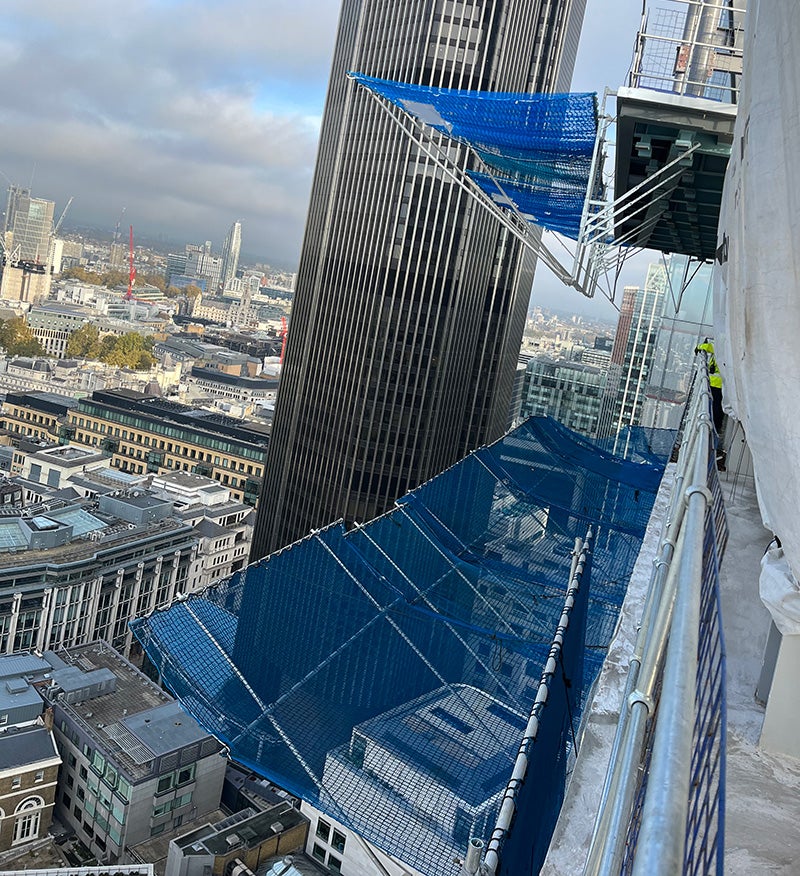

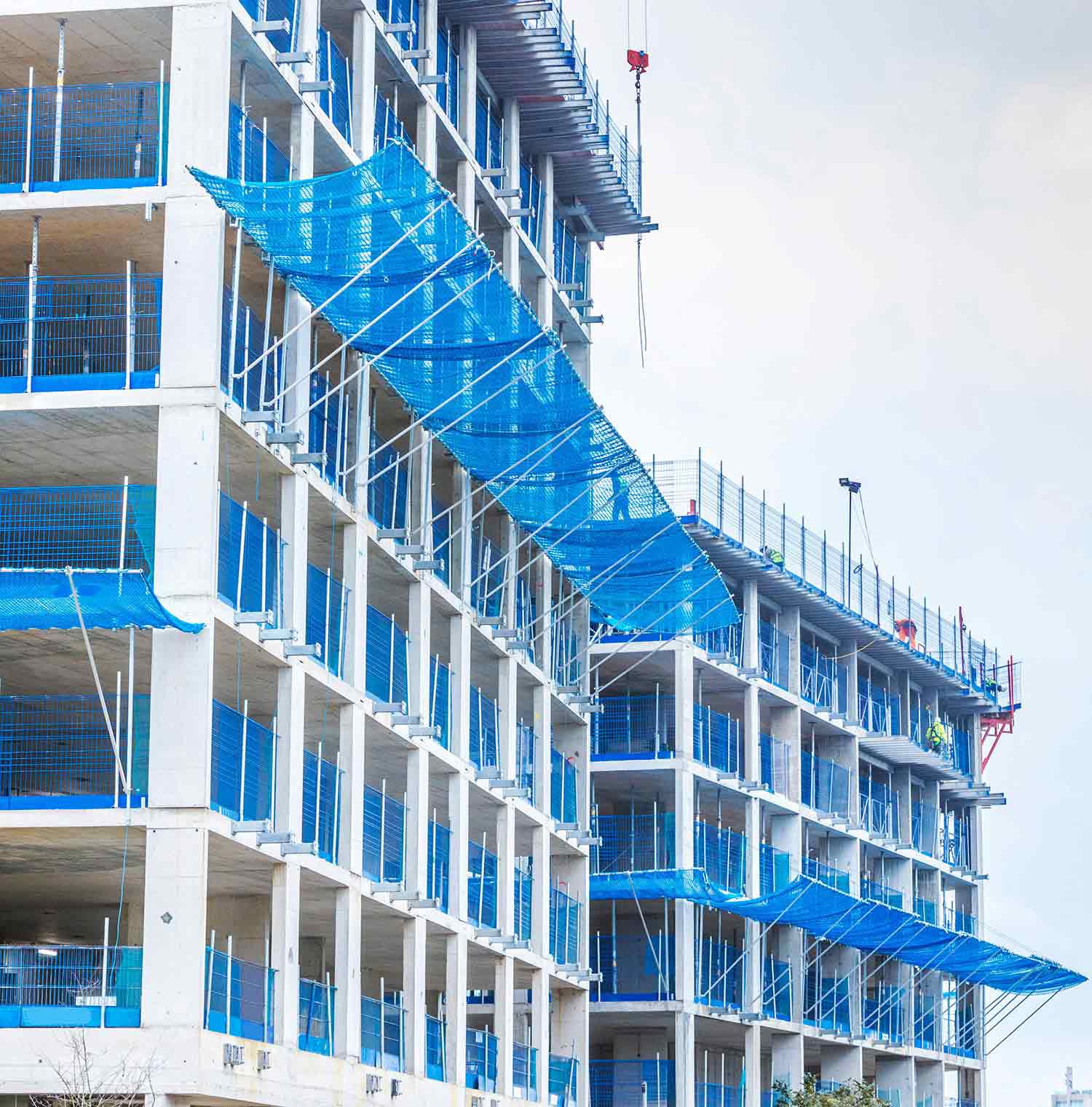

The Catchfan is designed to absorb the energy of falling objects, mitigating against them causing danger to the public or damage to property. Available in two standard sizes, 4m and 6m, the nets project 3.2m from the building giving construction sites the protection they need. Catchfan can be installed on Reinforced Concrete (RC), Steel Frames, Cross Laminated Timber (CLT) and Scaffold.
- Fully compliant with European Standard EN-1263-1 Type T
- A double layer of net made up of 60x60mm and a 20x20mm overlay
- Available in two sizes - 4m and 6m
Enquire today and HAKI's team of engineers can assist with Catchfan layouts for your latest projects.
Catchfan Standard
Attachments

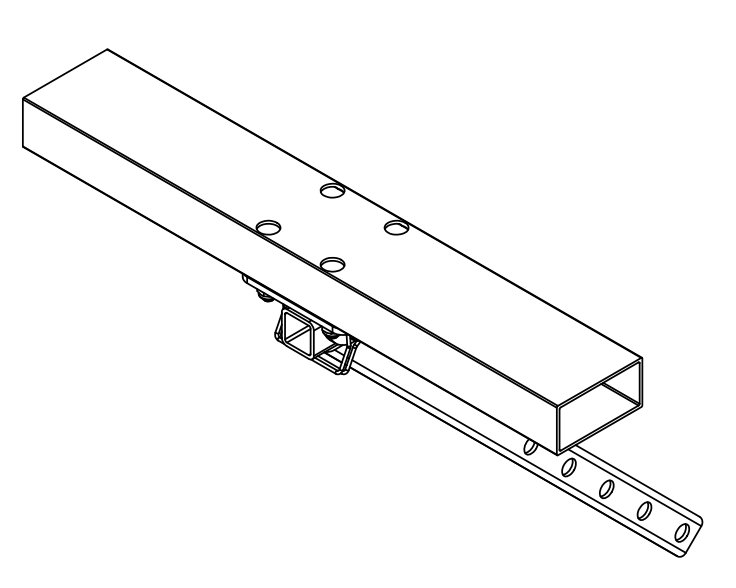

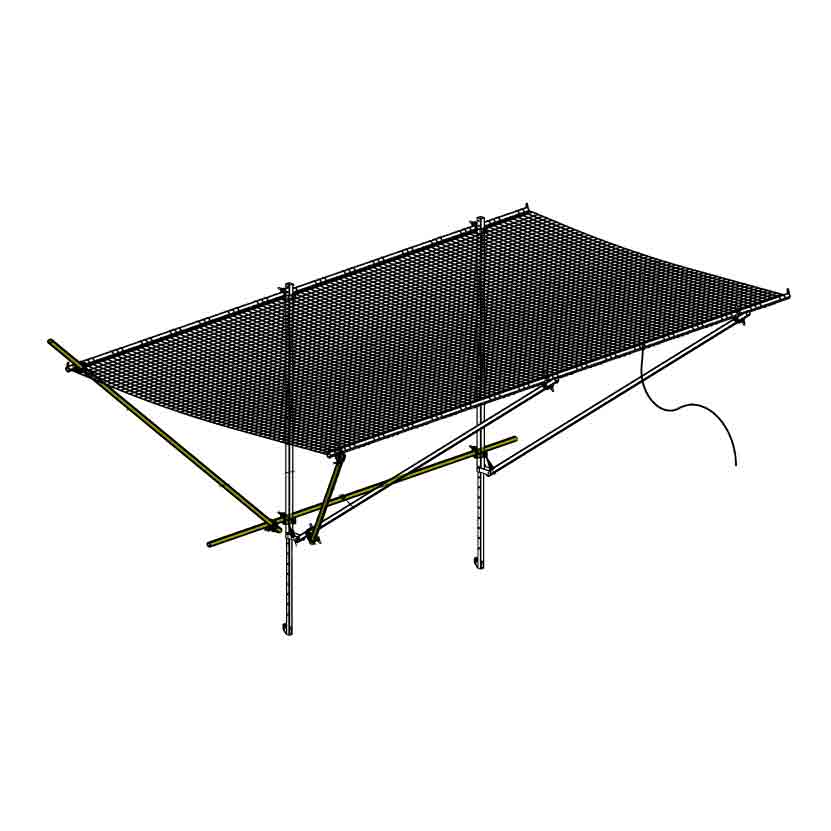

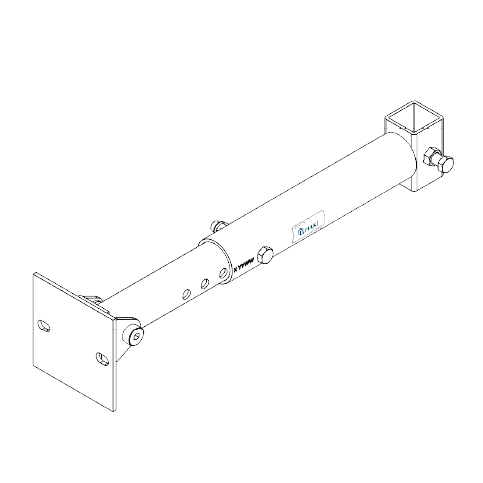

Explore our range of Catchfan Standard attachments serving RC frame, steel frame or scaffold. Technical Data Sheets for all attachments are linked below.
Catchfan Mini

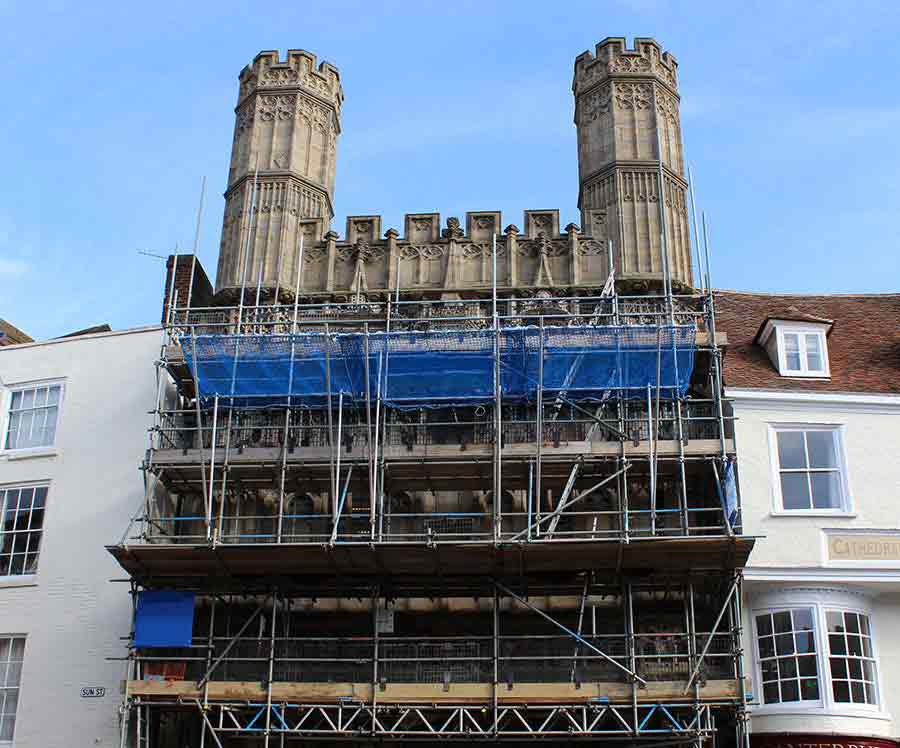

This smaller version of the Catchfan is ideal for use in confined spaces and on projects where space is limited. It is easy to install and adaptable to various structures, ensuring reliable safety performance. Available in one size, 3m, the Catchfan Mini projects 1.8m (5'10") from the edge. Total weight of approximately 40 kg.
- Extremely lightweight aluminium framework
- Designed for scaffolding and fitted with claw clamps
- 2 person install is easily achievable with no need for a crane lift
Enquire today and HAKI's team of engineers can assist with Catchfan Mini layouts for your latest projects.
Catchfan Maxi

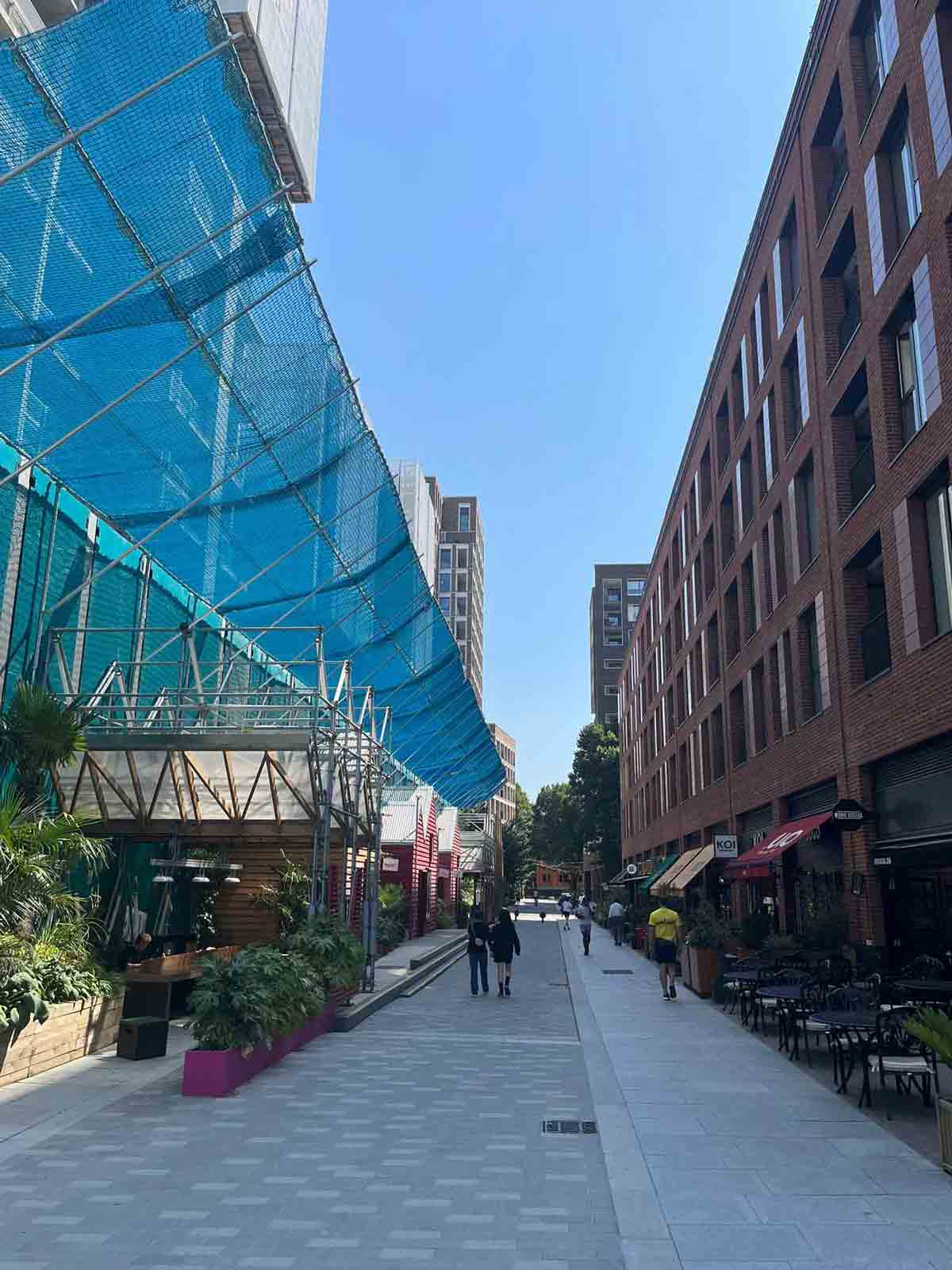

The largest containment solution, Catchfan Maxi, extends up to an impressive 4.2m (13'9") from the building and is suitable for reinforced concrete (RC) and steel structures.
- Provides protection over larger areas, ideal for large-scale construction projects
- Tested to be fully compliant with European Standard EN-1263-1 Type T
- Available in two sizes - 4m and 6m
Enquire today and HAKI's team of engineers can assist with Catchfan Maxi layouts for your latest projects.
Catchfan Maxi
Attachments
Explore our range of Catchfan Maxi attachments for RC and steel frame. Technical Data Sheets for all attachments are linked below.
