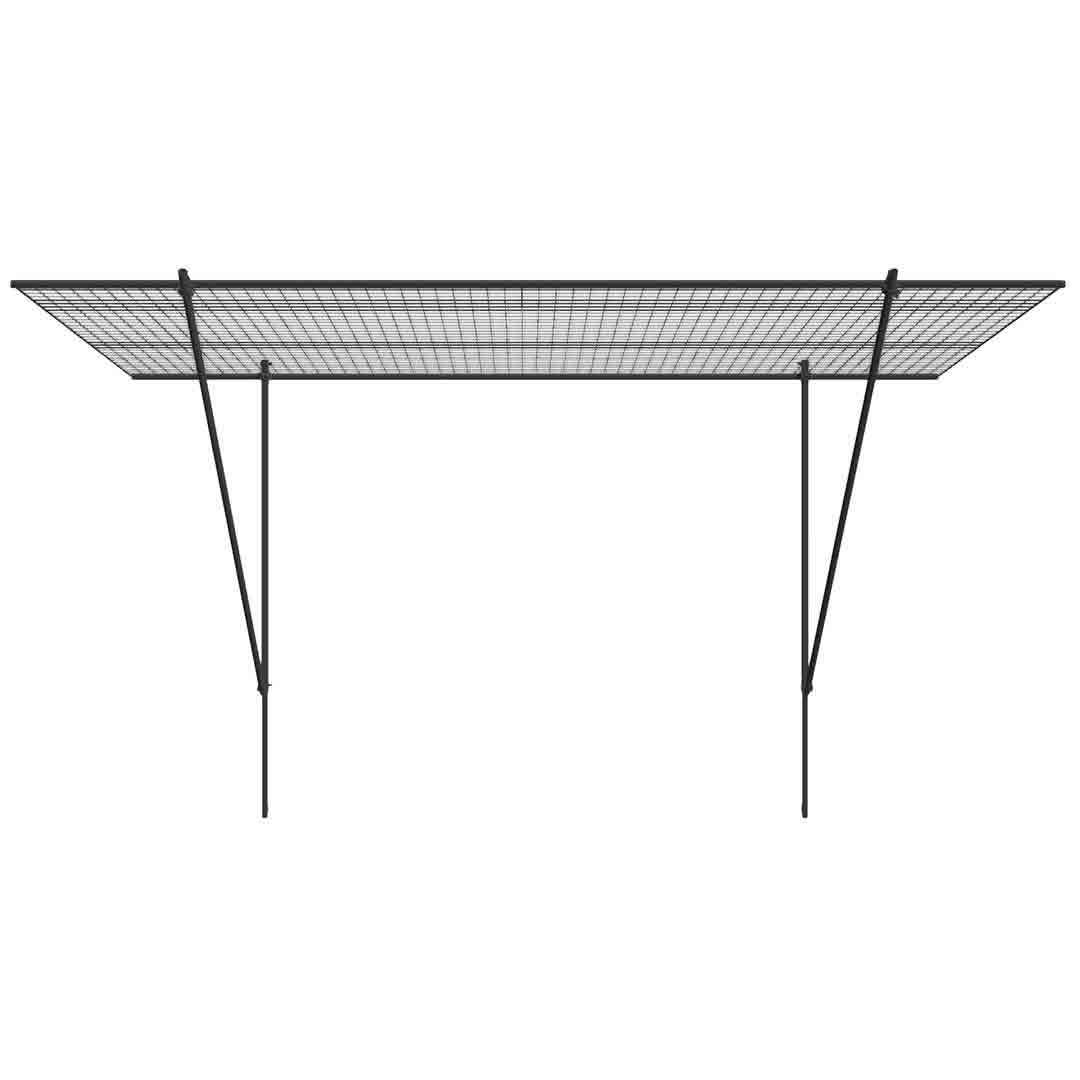

Catchfan (4m)

The Catchfan is designed to absorb the energy of falling objects, mitigating against objects causing danger to the public or damage to property. This is an excellent containment solution providing a greatly improved level of collective protection in high rise construction.
  • Available in 4m & 6m wide variants
  • Projects 3.2 m (10’7”) from the buildings edge
  • Attachments to accommodate all shapes and types of construction
Enquire now
Article number: V113-003
FAST DELIVERIES Within the whole UK
Support guarantee Response within 24 hours on weekdays
Buy Now Pay Later

Do you have any questions?

We are here to support

contact.uk@haki.com +44 1 827 28 25 25
Contact us
Contact us

Catchfan (4m)

The Catchfan is designed to absorb the energy of falling objects, mitigating against objects causing danger to the public or damage to property. This is an excellent containment solution providing a greatly improved level of collective protection in high rise construction.

Catchfan units are easy-to-install and fitted to the perimeter of a building or scaffolding.

Features:
• Full training available upon request.
• Full technical support from planning to delivery.
• A double layer of net made up of 60 x 60 mm and a 20 x 20 mm overlay manufactured from polypropylene.


Technical:
• The Catchfan is manufactured and tested to be fully compliant with European Standard EN-1263-1 Type T.
• This is capable of arresting a 100 kg (220 lbs) mass twice on any part of the system from a 7 m (22’11”) drop height.
Applications:
• Catchfan can be used on both reinforced concrete, steel frames and cross laminated timber (CLT). See which components fit different applications below.
