Fall Protection Equipment & Arrest Systems

What is an overhead fall protection system?

An overhead fall protection system is designed to provide a secure anchorage point above users working at heights. It features a built-in energy absorber that reduces impact forces in the event of a fall, enhancing safety for both the user and the structure. The system is compatible with various accessories for diverse applications.

What fall protection solutions does HAKI offer?

HAKI provides Alsipercha and Alupercha personal fall protection systems:

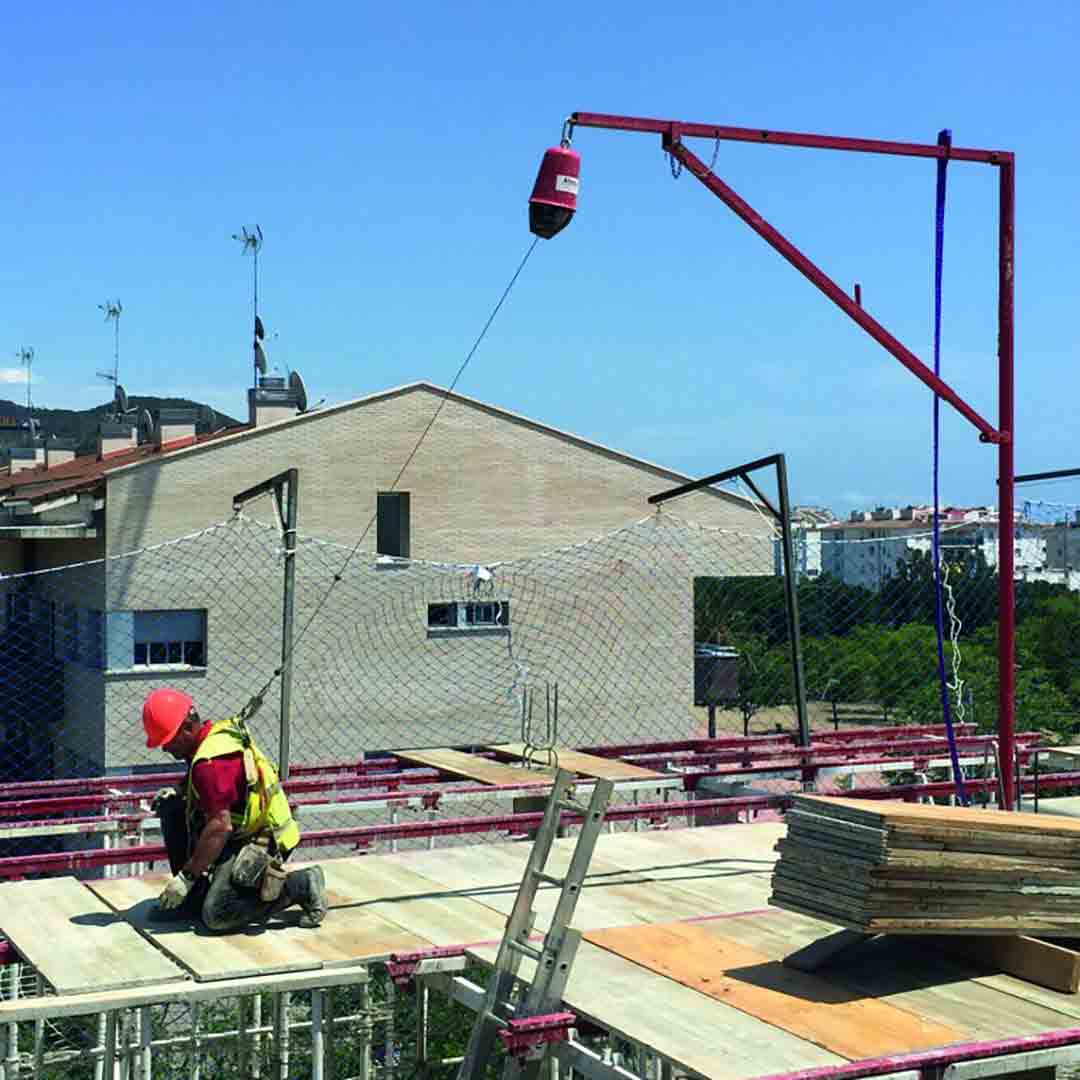

•    Alsipercha: A steel frame allowing a 6.5m movement radius for a worker in a harness.

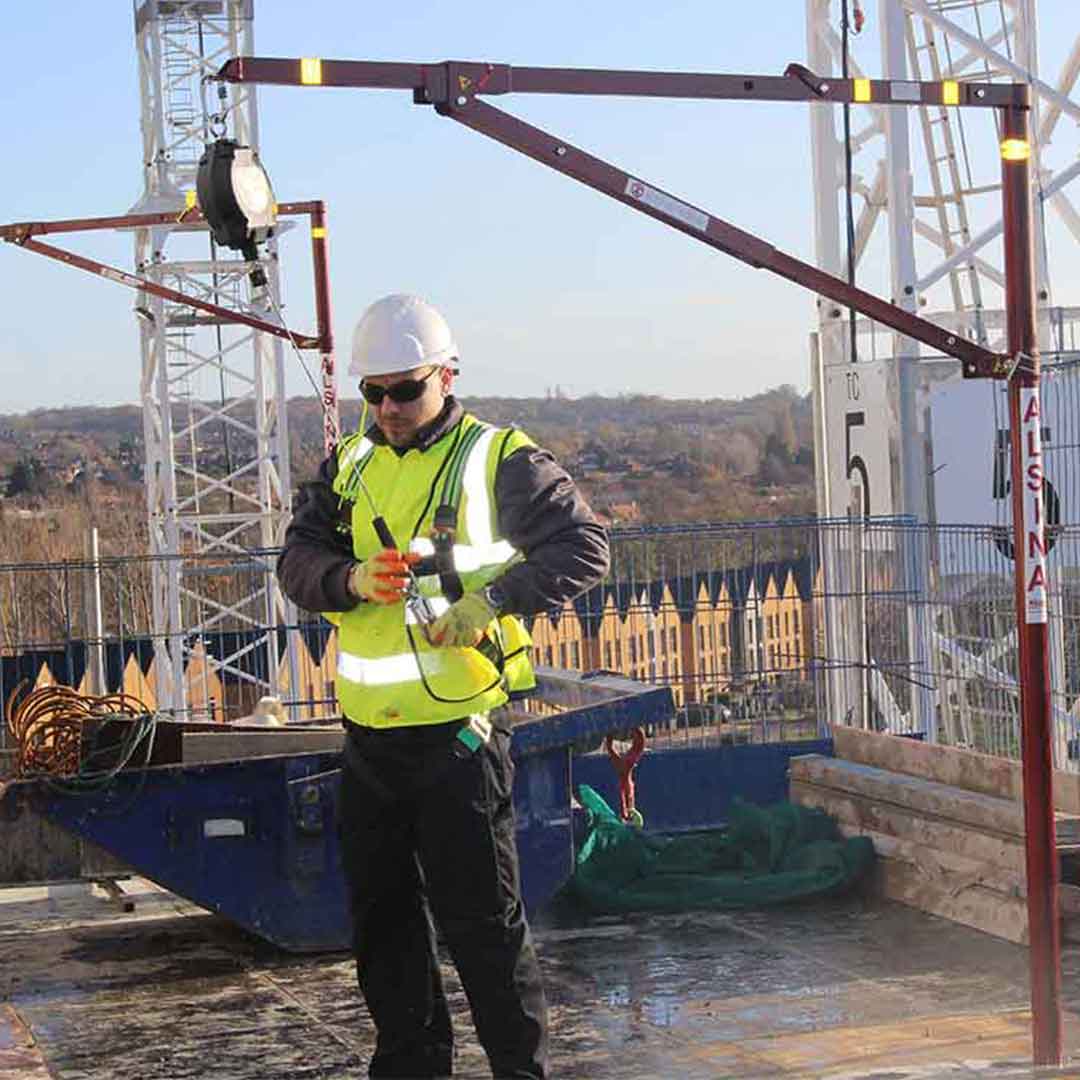

•    Alupercha: A lightweight (19kg) aluminium system that can be installed without a crane, offering 360° freedom of movement and covering areas up to 125 m².

How does the Alupercha differ from the Alsipercha?

The Alupercha is a lightweight fall arrest system constructed from high-quality aluminium and weighing only 19 kg. This design allows for manual installation without the need for cranes or lifting equipment, making it ideal for sites with limited access or where mobility is essential. Despite its lighter weight, it maintains the same safety features, including the energy absorber and compatibility with accessories.

What are the key applications of the Alsipercha and Alupercha systems?

These systems are versatile and can be used in various scenarios, including:
•    Loading and unloading trucks
•    Maintenance work on machinery or buildings
•    Working over tanker trucks
•    Construction tasks such as formwork decking and guardrail installation
•    Accessing elevated areas in industrial environments

What accessories are available for these fall protection systems?

The Alsipercha and Alupercha systems can be combined with a range of accessories to enhance their functionality:

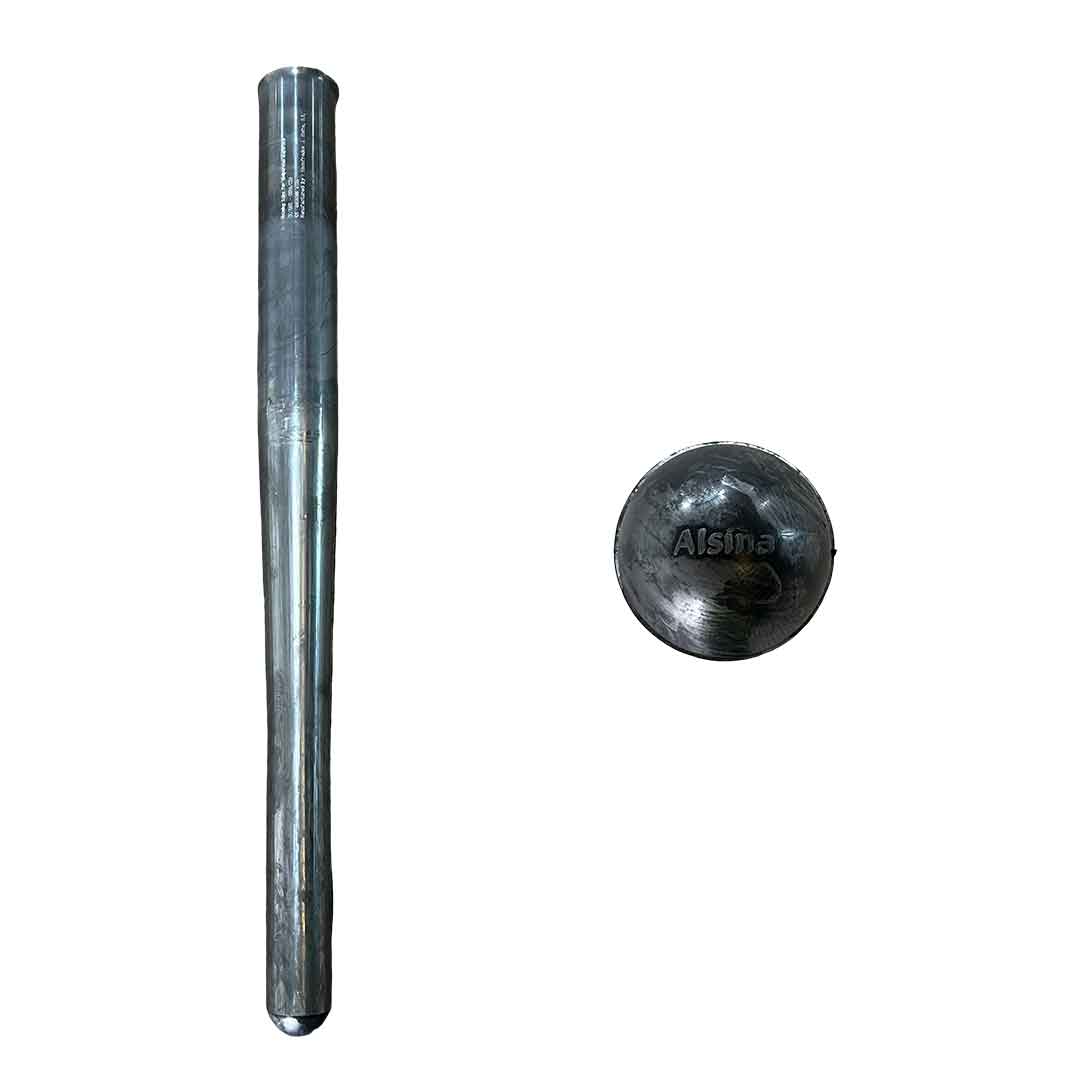

•    Housing Tube/Conical Tube: Provides a fixed anchorage point during formwork decking stages.

•    Mobile Base Unit (MBU): Alsipercha or Alupercha as a main anchor point fastened into a Mobile Base Unit which provides a 1000kg/1 tonne counterweight.

•    Column Clamps: Allow attachment to steel columns (IPE, IPN, HEB) with widths from 120 to 450 mm.
•    Tripod: Offers overhead protection at heights of 5.5 m or 6.5 m depending on the tripod size.
•    Wall Bracket: Enables installation on reinforced concrete walls or columns.
•    MF Counterweight System: A mobile base that uses the weight of a vehicle as a counterbalance, requiring no anchoring.
•    Rail System: Provides a rigid lifeline that eliminates the pendulum effect during a fall.

Are these systems compliant with international safety standards?

Yes, both the Alsipercha and Alupercha systems comply with major international safety standards. This compliance ensures their suitability for use in various regions and industries.
•    EN 795 (Europe)
•    OSHA/ANSI (USA)
•    CSA (Canada)

Can the Alsipercha and Alupercha systems be used by multiple users simultaneously?

Yes, both systems are designed to support up to two users at the same time, providing efficient fall protection for teams working at height.
